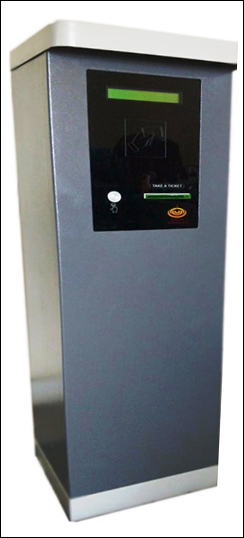

Automatic Ticket Dispenser
Features
- Automated fee collection and ticket dispensing machine includes
printer to produce receipts or passes for services or activities.
- 32-bit 1.86 Ghz Dual Core Atom Processor , Easily handling high
traffic Scenario.
- Automatic restart on power resuming after power failures.
- Smart Card + Bar Code Ticket + Long Range RFID
- TCP/IP Protocols Or Stand alone Mode
- Ticket Dispense barring on Parking Full Status
- Automatic Barrier opening on ticket dispensing
Technical Specs
- Input voltage : AC 220V+_10%;50Hz
- Temperature: -20C+60C
- Relative humidity : 95% non condensing
- Communication Interface : TCP/IP
- Transaction Data : 100000 Transaction
- Master data :5000 cards
- Enquiry Time : 2Sec
- Printing technology : Thermal
- Resolution : 203DPI
- Paper Width: 60MM
- Barcode Image Sensor: Wide,VGA
- Bar Code Type : 1D,2D, Postal Code ,stacked & Composite
- Barcode Scanner Type : Omni Directional
- Display Type ; Single Color Digital LCD Display
- Display Size ; 2Line 20 Character Per Line
- RFID Reader Frequency : 13.56Mhz
- Card Type Support : Mifare
- Housing : Powder Coated / Painted
- Physical Dimensions ( L*W*H): 300*300*1200
- Application : Outdoor
|
